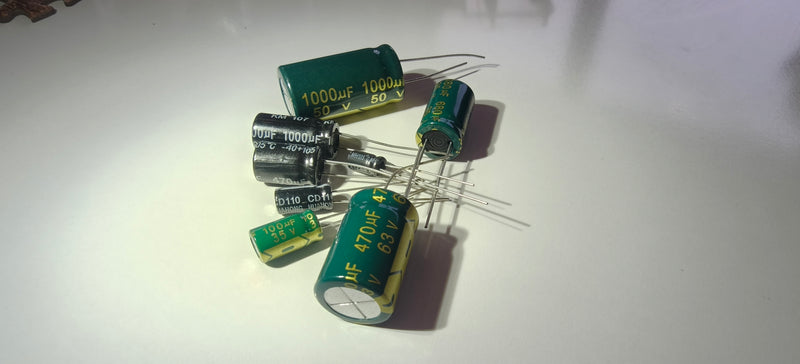

Aluminium electrolytic capacitors THT
Delivery Details
Description
Various THT aluminium electrolytic capacitors available in various ratings.
Case and package size varies depending on ratings.
We do not hold a specific manufacture or brand.
For more detailed info or verification on the specific sizes you will receive, feel free to email at info@electrodaves.co.nz
Note:
Below is a list of the common sizes we hold in stock.
| Capacitance \ Voltage | 10V | 16V | 25V | 35V | 50V | 63V |
|---|---|---|---|---|---|---|
| 0.1uF | 0.1uF 50V | |||||
| 0.22uF | 0.22uF 50V | |||||
| 0.47uF | 0.47uF 50V | |||||
| 1uF | 1uF 50V | |||||
| 2.2uF | 2.2uF 50V | |||||
| 3.3uF | 3.3uF 50V | |||||
| 4.7uF | 4.7uF 50V | |||||
| 10uF | 10uF 25V | 10uF 50V | ||||
| 22uF | 22uF 16V | 22uF 25V | 22uF 50V | |||
| 33uF | 33uF 16V | |||||
| 47uF | 47uF 10V | 47uF 16V | 47uF 25V | 47uF 35V | 47uF 50V | |
| 100uF | 100uF 10V | 100uF 16V | 100uF 25V | 100uF 35V | 100uF 50V | 100uF 63V |
| 220uF | 220uF 10V | 220uF 16V | 220uF 25V | 220uF 35V | 220uF 50V | |
| 330uF | 330uF 16V | 330uF 25V | 330uF 35V | 330uF 50V | 330uF 63V | |
| 470uF | 470uF 10V | 470uF 16V | 470uF 25V | 470uF 35V | 470uF 50V | 470uF 63V |
| 680uF | 680uF 16V | 680uF 35V | 680uF 50V | |||
| 1000uF | 1000uF 16V | 1000uF 25V | 1000uF 50V | 1000uF 63V | ||
| 1500uF | 1500uF 16V | 1500uF 35V |
