Large format printing - Request Quote
Delivery Details
Description
ElectroDaves has large format printing capabilities and can offer large format printing services.

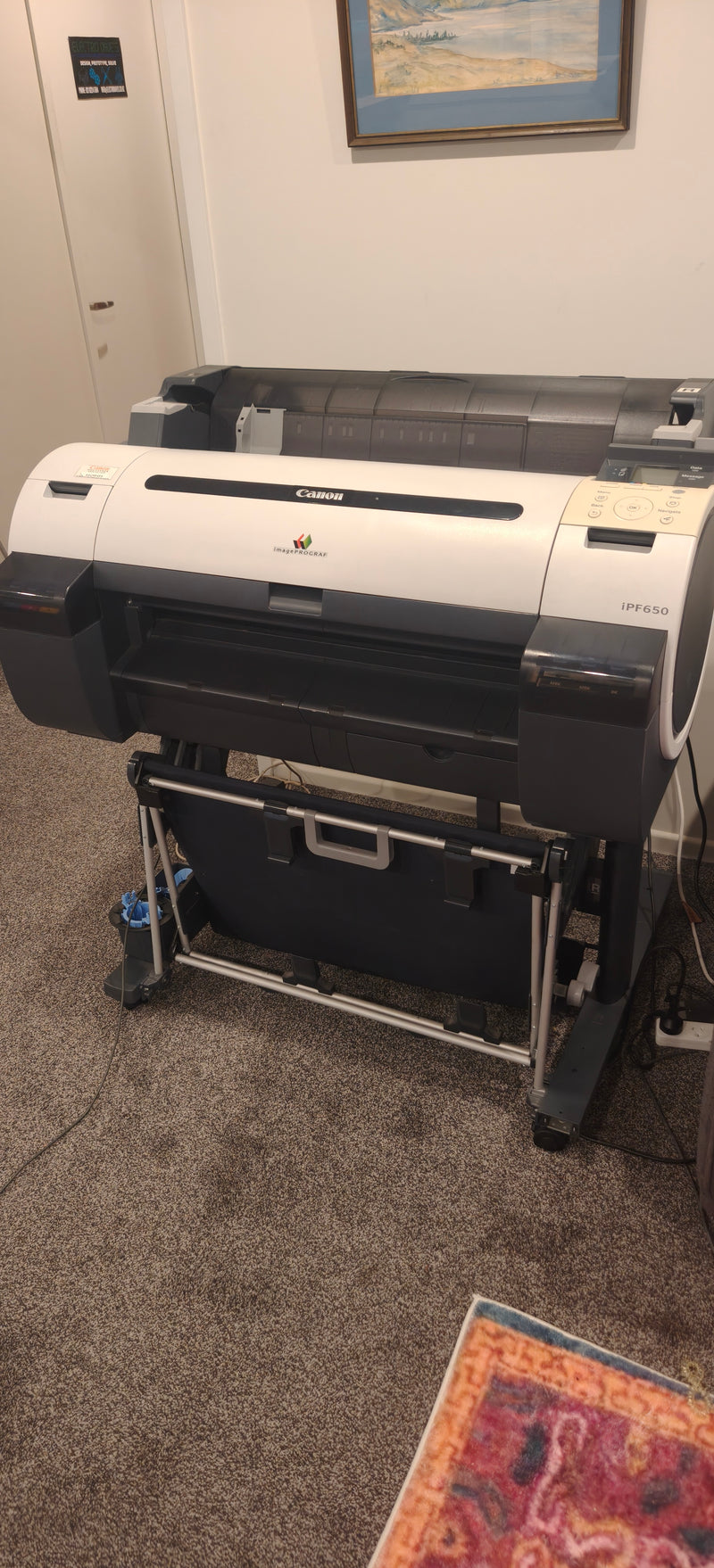

The IPF650 allows us to duplicate large format prints, on a variety of media. We can print schematics, banners, technical drawings, and much more!
We also have solvent based, and vinyl cutting solutions in house. And are able to print stickers and signage.
The IP650 offers high quality prints, using inkjet technology, printing up to a resolution 2400x1200DPI.
Contact for a free quote regarding your printing needs!
| SKU / Part No. | 10153122103572 |
| Category | Electronics & Custom Modules |
| Package Contents | 1 x Circuit Module Board |
Technical Specifications
| Operating Voltage | 12V DC Nominal (9V - 16V Operating Range) |
| Power / Current Draw | < 15mA Idle / 150mA Active Flash |
| Interface / Output | High-side Relay / Transistor Signal Output |
| Operating Temperature | -40°C to +85°C (Automotive & Industrial Grade) |
| Board Dimensions | 45mm x 35mm x 18mm |
| Enclosure / PCB Finish | FR-4 Double-Sided PCB with Protective Coating |
Handling & Electronics Care
• ESD Protection: Always wear anti-static wrist straps or touch a grounded surface before handling circuit boards.
• Wiring Precautions: Ensure proper polarity (+VCC and GND) before applying power. Reverse polarity may damage sensitive semiconductors.
• Moisture & Environment: Store in dry, sealed anti-static bags. Keep away from direct moisture, liquid contact, and extreme thermal shock.
• Power Supply: Use regulated DC power sources within the specified voltage limits.
Warranty & Support Terms
Includes 1-Year Limited Manufacturer Warranty covering component defects. Technical support, wiring diagrams, and application notes are available directly through ElectroDaves engineering support.
