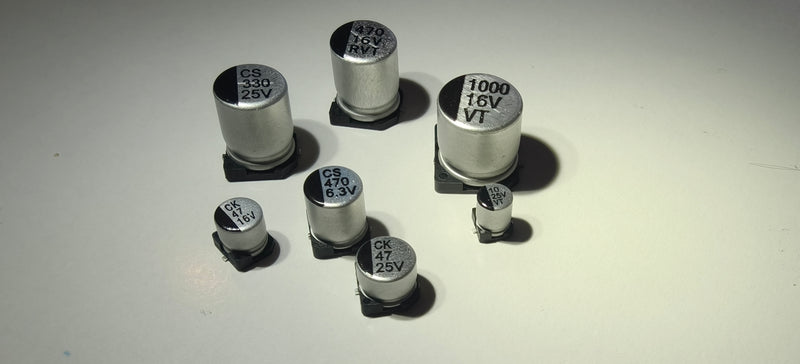

SMT electrolytic capacitors - Choose rating
Delivery Details
Description
Various SMT aluminium electrolytic capacitors available in various ratings.
Case and package size varies depending on ratings.
For more detailed info or verification on the specific sizes you will receive, feel free to email at info@electrodaves.co.nz
Note:
Below is a list of the common sizes we hold in stock.
| Capacitance \ Voltage | 6.3V | 10V | 16V | 25V | 35V | 50V |
|---|---|---|---|---|---|---|
| 1uF | 1uF 50V | |||||
| 4.7uF | 4.7uF 50V | |||||
| 10uF | 10uF 16V | 10uF 25V | 10uF 35V | 10uF 50V | ||
| 22uF | 22uF 16V | 22uF 25V | ||||
| 47uF | 47uF 16V | 47uF 25V | 47uF 35V | 47uF 50V | ||
| 100uF | 100uF 10V | 100uF 16V | 100uF 25V | 100uF 35V | 100uF 50V | |
| 220uF | 220uF 10V | 220uF 16V | 220uF 35V | |||
| 330uF | 330uF 25V | |||||
| 470uF | 470uF 6.3V | 470uF 16V | ||||
| 1000uF | 1000uF 16V |
