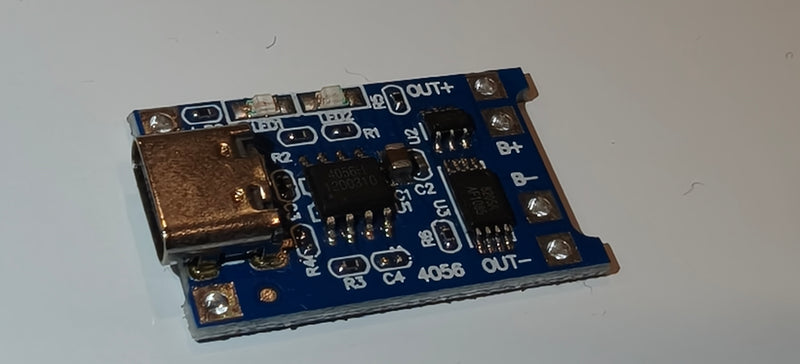

TP4056 lithium battery charge protect board USB-C
Delivery Details
Description
Simple way of integrating a single cell lithium into your project. This unit protects against under voltage of the lithium cell, and over-current. USB connector allows for convenient charging. 1A charging current.
| SKU / Part No. | 10334505074964 |
| Category | Electronics & Custom Modules |
| Package Contents | 1 x Circuit Module Board |
Technical Specifications
| Operating Voltage | 12V DC Nominal (9V - 16V Operating Range) |
| Power / Current Draw | < 15mA Idle / 150mA Active Flash |
| Interface / Output | High-side Relay / Transistor Signal Output |
| Operating Temperature | -40°C to +85°C (Automotive & Industrial Grade) |
| Board Dimensions | 45mm x 35mm x 18mm |
| Enclosure / PCB Finish | FR-4 Double-Sided PCB with Protective Coating |
Handling & Electronics Care
• ESD Protection: Always wear anti-static wrist straps or touch a grounded surface before handling circuit boards.
• Wiring Precautions: Ensure proper polarity (+VCC and GND) before applying power. Reverse polarity may damage sensitive semiconductors.
• Moisture & Environment: Store in dry, sealed anti-static bags. Keep away from direct moisture, liquid contact, and extreme thermal shock.
• Power Supply: Use regulated DC power sources within the specified voltage limits.
Warranty & Support Terms
Includes 1-Year Limited Manufacturer Warranty covering component defects. Technical support, wiring diagrams, and application notes are available directly through ElectroDaves engineering support.
