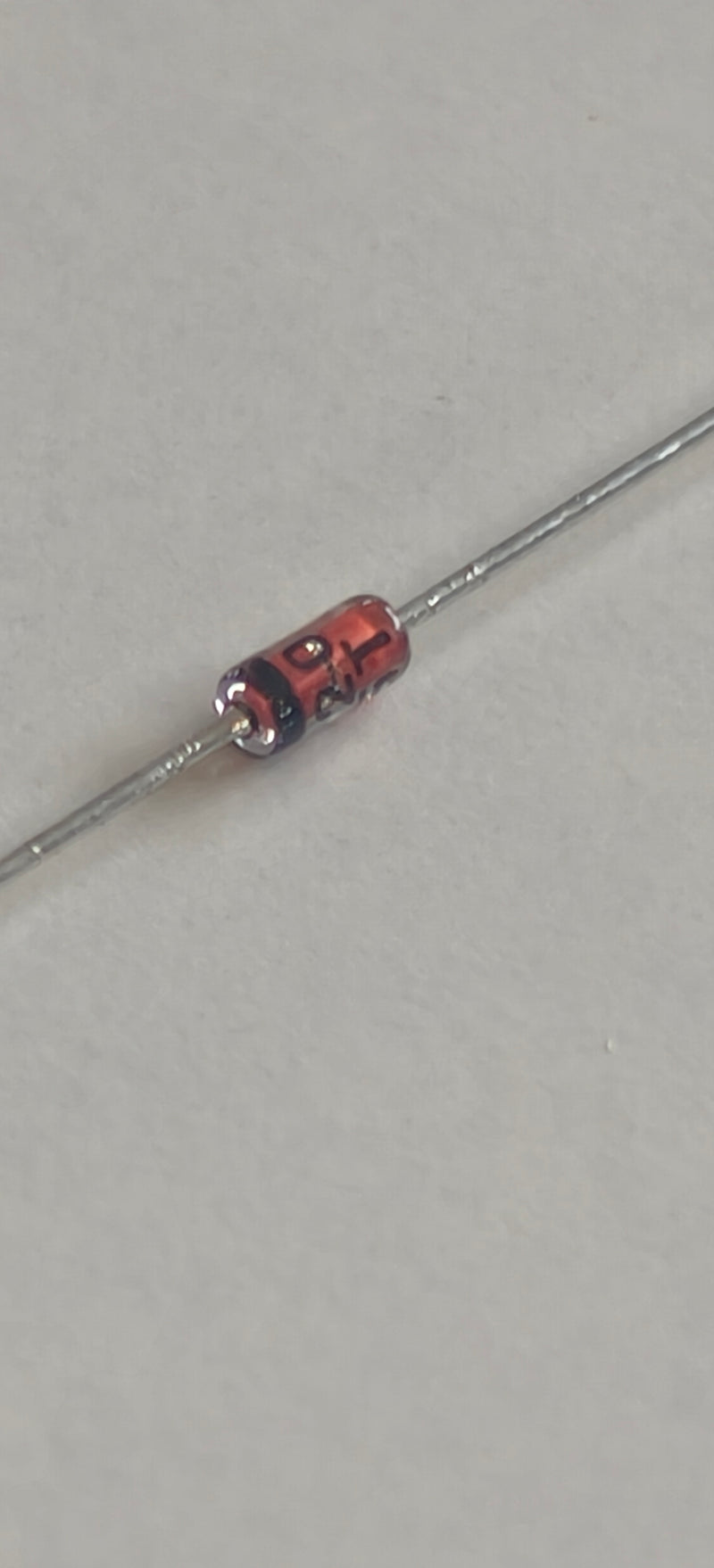

Zener diode 1W THT DO-41 - Multiple voltages
Delivery Details
Description
High quality 1W Zener didoes available in various voltage ratings. Suitable for prototyping, repairs, reference voltage, or other electronics use.
The following devices will be supplied for the selected voltage
- 1N4727A (3V)
- 1N4728A (3.3V)
- 1N4729A (3.6V)
- 1N4730A (3.9V)
- 1N4731A (4.3V)
- 1N4732A (4.7V)
- 1N4733A (5.1V)
- 1N4734A (5.6V)
- 1N4735A (6.2V)
- 1N4736A (6.8V)
- 1N4737A (7.5V)
- 1N4738A (8.2V)
- 1N4739A (9.1V)
- 1N4740A (10V)
- 1N4741A (11V)
- 1N4742A (12V)
- 1N4743A (13V)
- 1N4744A (15V)
- 1N4745A (16V)
- 1N4746A (18V)
- 1N4747A (20V)
- 1N4748A (22V)
- 1N4749A (24V)
- 1N4750A (27V)
- 1N4751A (30V)
- 1N4752A (33V)
- 1N4753A (36V)
- 1N4754A (39V)
- 1N4755A (43V)
- 1N4756A (47V)
| SKU / Part No. | 10333814948116 |
| Category | Electronics & Custom Modules |
| Package Contents | 1 x Circuit Module Board |
Technical Specifications
| Operating Voltage | 12V DC Nominal (9V - 16V Operating Range) |
| Power / Current Draw | < 15mA Idle / 150mA Active Flash |
| Interface / Output | High-side Relay / Transistor Signal Output |
| Operating Temperature | -40°C to +85°C (Automotive & Industrial Grade) |
| Board Dimensions | 45mm x 35mm x 18mm |
| Enclosure / PCB Finish | FR-4 Double-Sided PCB with Protective Coating |
Handling & Electronics Care
• ESD Protection: Always wear anti-static wrist straps or touch a grounded surface before handling circuit boards.
• Wiring Precautions: Ensure proper polarity (+VCC and GND) before applying power. Reverse polarity may damage sensitive semiconductors.
• Moisture & Environment: Store in dry, sealed anti-static bags. Keep away from direct moisture, liquid contact, and extreme thermal shock.
• Power Supply: Use regulated DC power sources within the specified voltage limits.
Warranty & Support Terms
Includes 1-Year Limited Manufacturer Warranty covering component defects. Technical support, wiring diagrams, and application notes are available directly through ElectroDaves engineering support.
